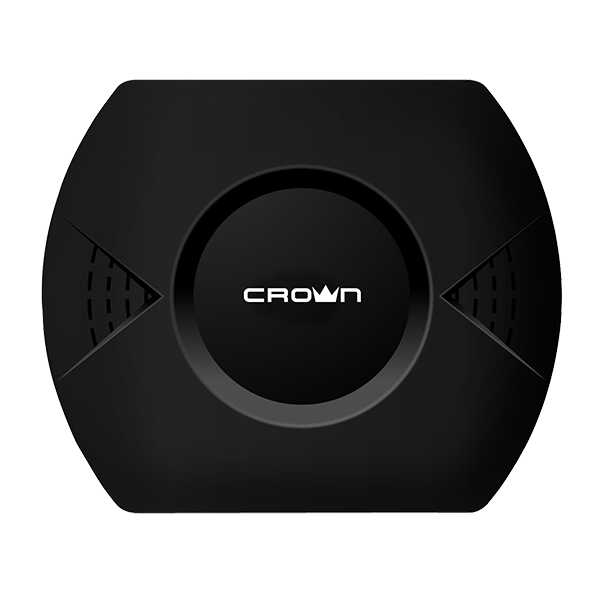

new CMDV-001

Features:

Fully supports the standards: DVB-T2, MPEG 2, MPEG4;
PVR function and playback formats MP3, MP4, JPEG, AVI, etc via USB 2.0;
Automatic and manual scanning of TV and radio channels;
Supports multilingual subtitles
Function EPG (electronic program guide);
Parental Control, sleep timer function;
Stores up to 1000 programs during power failure;
Easy installation, ease of use.

Where to buy

Warranty 12 months

Where to buy

Service centers

Delivery

The digital broadcast format

Television actively goes to digital broadcasting. The main advantages of the transition is to improve the image quality, the almost complete absence of noise and an increase in the number of received TV channels. C 2012 in all newly created essential terrestrial networks digital television broadcasting is carried out only in the DVB-T2 standard. The new standard broadcasting improves capacity digital stream to 30%, to improve the quality of the transmitted signal and making possible the transmission of additional information in the transmitted packet. Unfortunately, at the moment, a large number of TV models are not capable of receiving broadcasts in this format. Prefix DVB-T2 is an affordable solution to this problem.

Support for HD format

This device supports video playback in HD.

Support for external hard drives

Prefix CMDV-001 supports connection of external hard drives and reading file formats MP3, MP4, JPEG, AVI, etc., so you can play your movies and record even if the TV does not support this function.

Connectors CMDV-001

Timer recording

This set-top box company CROWN has often irreplaceable ester recording function timer. Recording will allow air to see TV shows you would have missed because of an inconvenient time display or view other channels. Recording is carried out on the external media allowing for repeated viewing and sharing.

EPG function

Electronic program guide

EPG function is a screen menu that displays the schedule of television and radio programs with interactive navigation of content by time, title, channel, genre, and so on. D. And helps to always be up to date TV programs.

Acquire

To purchase this product and delivery methods
contact your sales specialist.

Sales department

Presentations

Check out the range of our products in the presentation section.
If you have any questions, please contact a sales specialist.
View presentation

CMDV-001

Chip	MSTAR 7T0
Supported standards	DVB-T2, MPEG 2, MPEG4
Resolution Support	720
Aspect	16: 9 and 4: 3

Interface

USB2.0	The ability to play multimedia files
HDMI	to play multimedia files
HD-Out	for DVB-T2
CVBS	Yes
Coaxial	Yes

Options

IF input frequency	VHF: 174MHz - 230MHz / UHF: 474MHz - 860MHz;
Throughput	6/7 / 8MHz
Input Level	-83dBm;
Input signal	IEC- type of mother
IR - Receiver	38 KHz
Power consumption	DC 5V / 1.5A
Indicators	Power, lock signal;

Additionally

Automatic and manual search of all supported TV and radio channels;

Multilingual support for subtitles;

Electronic Program Guide;

Parental control;

Function PVR (recording) via USB 2.0;

Function Timeshift;

Play multimedia files through USB 2.0;

Stores up to 1000 programs at power-down.

Physical parameters

Weight	150 g
Size	120 * 105 * 40 mm

Equipment

Power supply
DVB-T2 receiver, remote control connector (tulip)

Packing

Size	160 * 166 * 73 mm
Weight	433 g
Barcode	6291105915465
